Diamond resinoids

Highest quality and maximum output.

Diamond resinoids

Diamond resinoids are tools used for grinding and polishing marble, granite, quartzite, ceramics and engineering stone.

They are produced by mixing epoxy resins with industrial diamond.

The resins have the ability to retain the diamond grit for a long time, which wears down without ever flattening, thus exerting a persistent abrasion on the surfaces.

Thanks to this continuous action, our diamond resinoids bring surfaces to an unparalleled degree of smoothness and polish.

The remarkable tool life dramatically reduces the sludge produced during machining.

The diamond resinoids you see on this page are created from blends that ensure top-quality workmanship in terms of both production and cost.

Diamond resinoids

BEEHIVE Ø 100mm.

BEEHIVE Ø 100mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed profile sanding machines, CNC machining centres and single-head plate sanding machines.

BEEHIVE Ø 130mm.

BEEHIVE Ø 130mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed sanding machines for profiles, edge sanders, CNC machining centres and single-head plate sanders.

BEEHIVE Ø 150mm.

BEEHIVE Ø 150mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits:  20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: automatic fixed-bed profile sanders, edge sanders, CNC machining centres and single-head sanding machines.

HELIX Ø 100mm.

HELIX Ø 100mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed profile sanding machines, CNC machining centres and single-head plate sanding machines.

HELIX Ø 130mm.

HELIX Ø 130mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed sanding machines for profiles, edge sanders, CNC machining centres and single-head plate sanders.

HELIX Ø 150mm.

HELIX Ø 150mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits:  20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments Snail, M14, Terzago, Velcro.
Application machinery: automatic fixed-bed profile sanders, edge sanders, CNC machining centres and single-head sanding machines.

TURTLE Ø 100mm.

TURTLE Ø 100mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed profile sanding machines, CNC machining centres and single-head plate sanding machines.

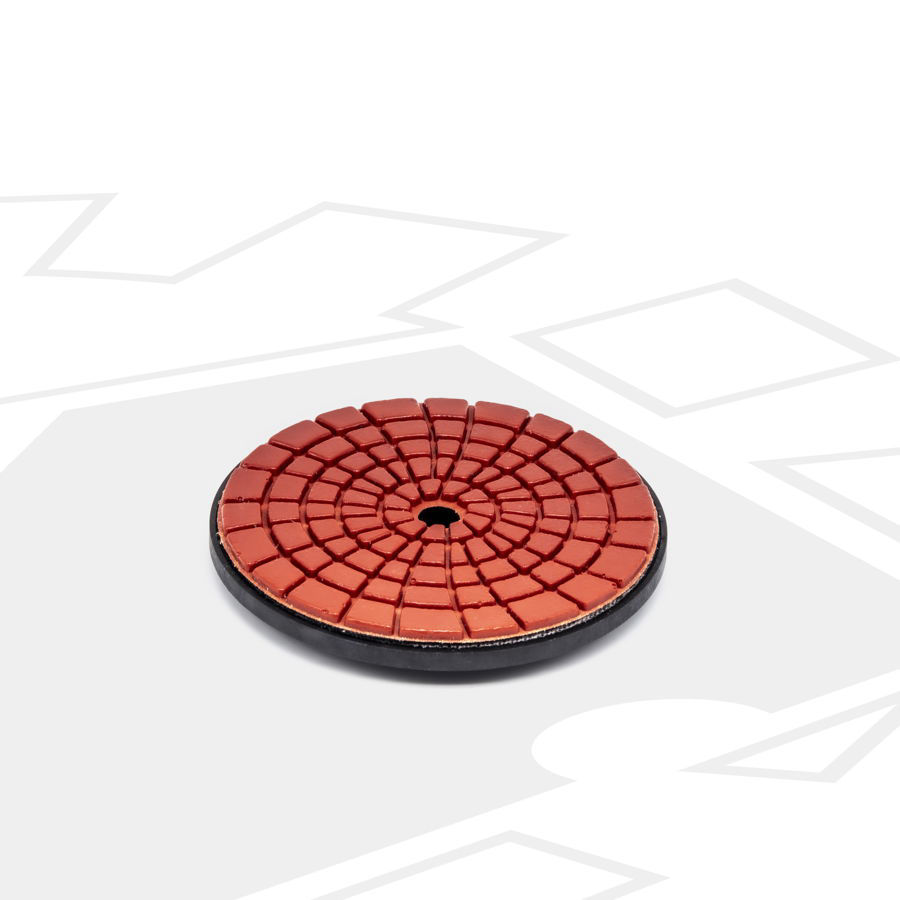

TURTLE Ø 130mm.

TURTLE Ø 130mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed sanding machines for profiles, edge sanders, CNC machining centres and single-head plate sanders.

TURTLE Ø 150mm.

TURTLE Ø 150mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: automatic fixed-bed profile sanders, edge sanders, CNC machining centres and single-head sanding machines.


TURTLE Ø 200mm.

TURTLE Ø 200mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits:  20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Magnet, Velcro.
Application machinery: manual single-arm sanding machines, automatic fixed-bench sanding machines for profiles, CNC machining centres and single-head plate sanding machines.

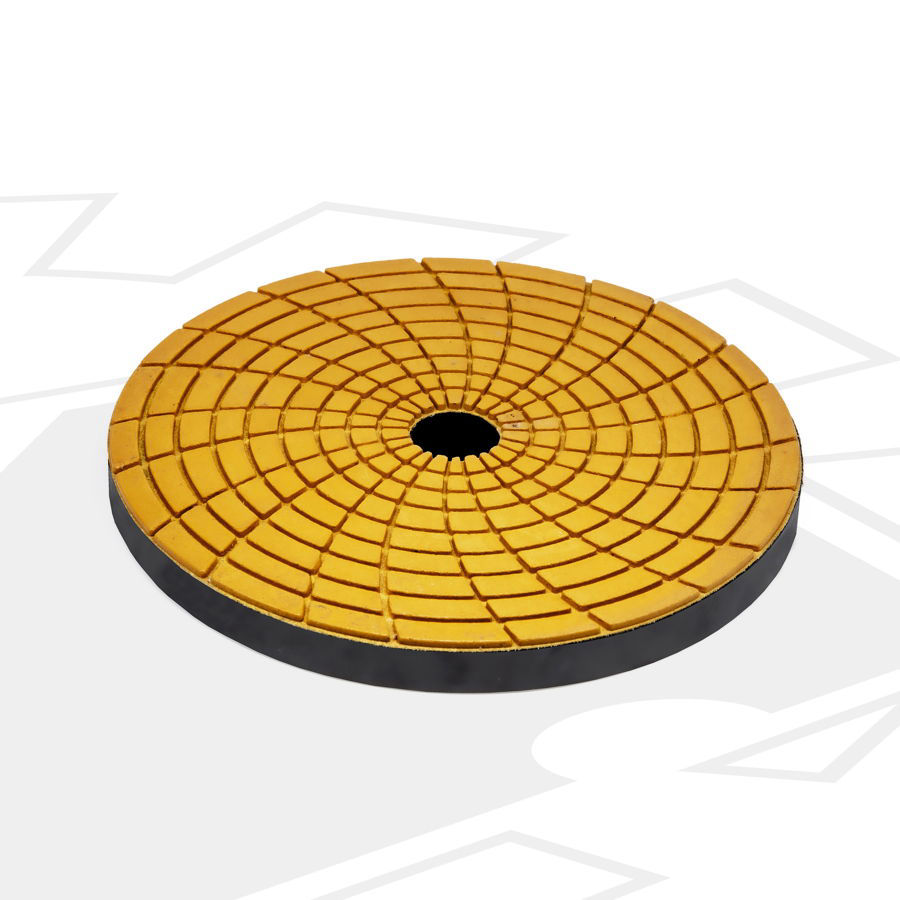

TURTLE Ø 250mm.

TURTLE Ø 250mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Magnet, Velcro.
Application machinery: manual single-arm sanding machines, automatic fixed-bench sanding machines for profiles, CNC machining centres and single-head plate sanding machines.

BULLNOSE Ø 100mm.

BULLNOSE Ø 100mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits:  20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed profile sanding machines, CNC machining centres and single-head plate sanding machines.

BULLNOSE Ø 130mm.

BULLNOSE Ø 130mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: manual wet sanding machines, automatic fixed-bed sanding machines for profiles, edge sanders, CNC machining centres and single-head plate sanders.

BULLNOSE Ø 150mm.

BULLNOSE Ø 150mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail, M14, Terzago, Velcro.
Application machinery: automatic fixed-bed profile sanders, edge sanders, CNC machining centres and single-head sanding machines.

BEVEL Ø 130mm.

BEVEL Ø 130mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Snail.
Application machinery: automatic fixed-bed profile sanders, edge sanders, CNC machining centres and automatic bevelling machines.

FRANKFURT VR h. 16mm.

FRANKFURT VR h. 16mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Frankfurt and Velcro.
Application machinery: manual single-arm sanders, floor sanders, single-head sanding machines, slab sanders and marble sanding machines.

FRANKFURT 4Tips h. 25mm.

FRANKFURT 4Tips h. 25mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits:  20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Frankfurt and Velcro.
Application machinery: manual single-arm sanders, floor sanders, single-head sanding machines, slab sanders and marble sanding machines.

FICKERT L. 130mm. h. 16mm.

FICKERT L. 130mm. h. 16mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Fickert.
Application machinery: slab sanders, marble sanding machines, single-head slab sanders.

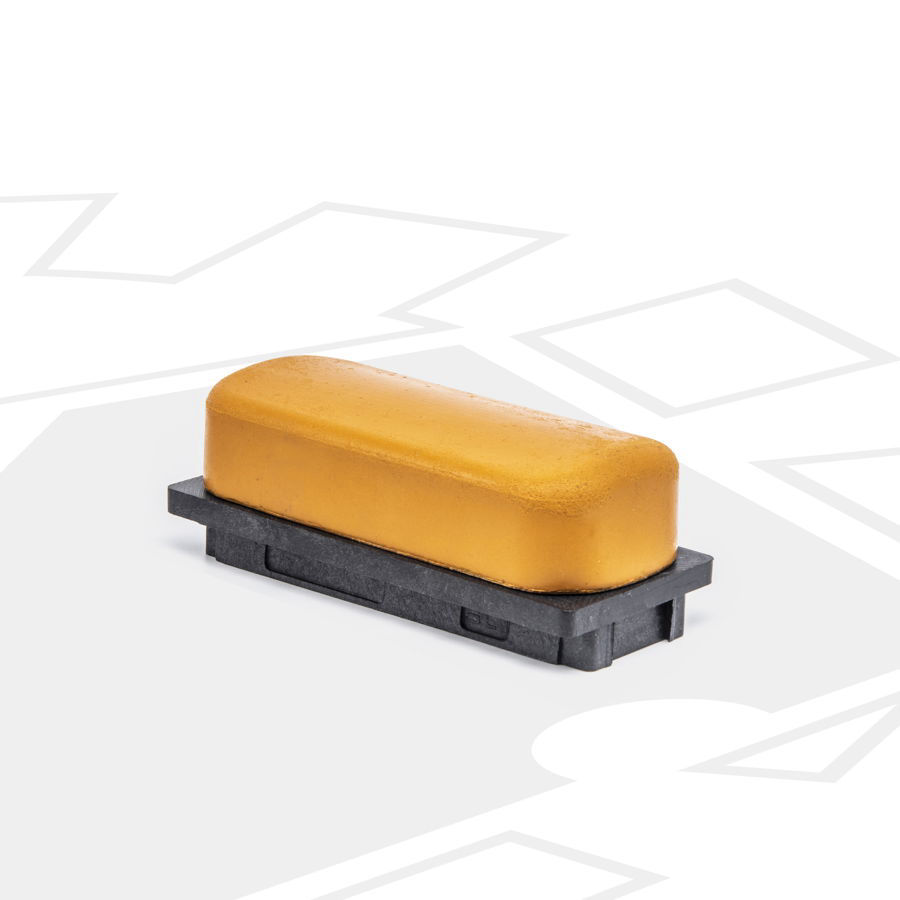

FICKERT L. 130mm. h. 32mm.

FICKERT L. 130mm. h. 32mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Fickert.
Application machinery: slab sanders, marble sanding machines, single-head slab sanders.

FICKERT DROP L. 150mm. h.16mm.

FICKERT DROP L. 150mm. h.16mm.

These diamond tools are used for grinding or polishing marble, granite, quartzite, ceramics and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Fickert.
Application machinery: slab sanders, marble sanding machines, single-head slab sanders.

FICKERT L. 170mm.

FICKERT L. 170mm.

These diamond tools are used for grinding or polishing granites and quartzite.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Fickert.
Application machinery: slab sanders, marble sanding machines, single-head slab sanders.

MUNCHEN

MUNCHEN

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone.

Grits: 20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Munchen.
Application machinery: manual single-arm sanders, floor sanders.

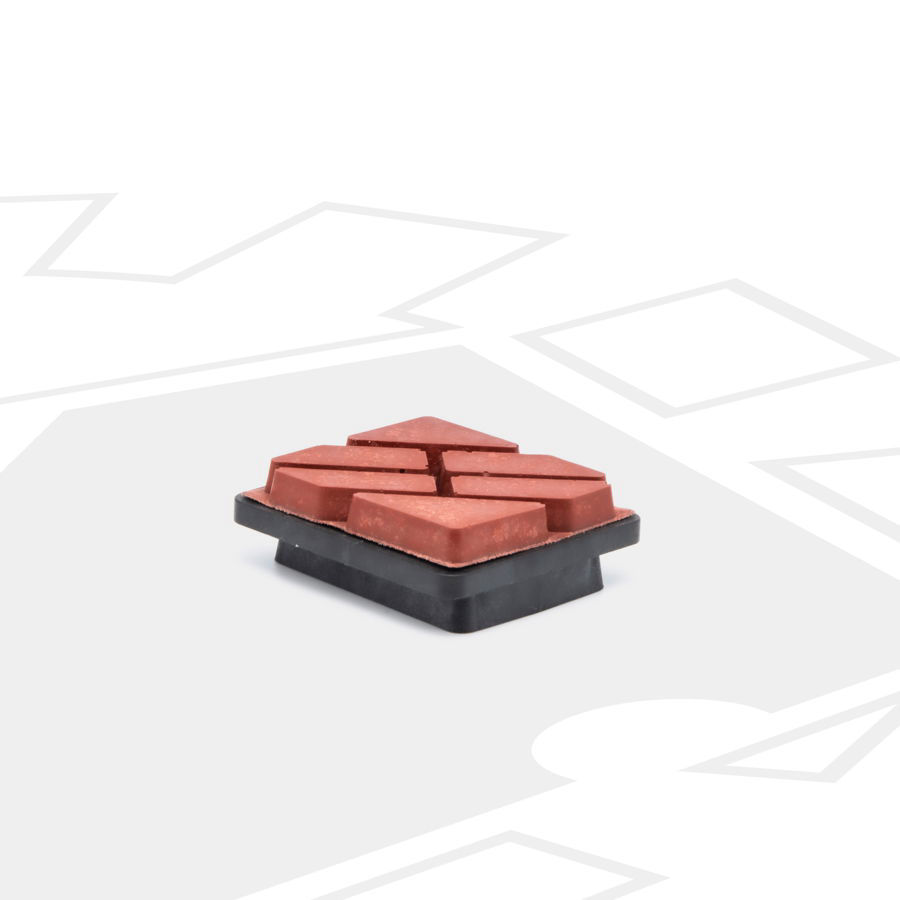

THIBAUT

THIBAUT

These diamond tools are used for grinding or polishing marble, granite, quartzite and engineering stone

Grits:  20 - 30 - 40 - 60 - 80 - 120 - 220 - 320 - 400 - 600 - 800 - 1800 - 3500 - 6000 - 10000 - BUFFER.
Attachments: Thibaut.
Application machinery: manual single-arm sanding machines, automatic fixed-bed profile sanding machines, sanding machines with articulated joint heads for convex surfaces.
